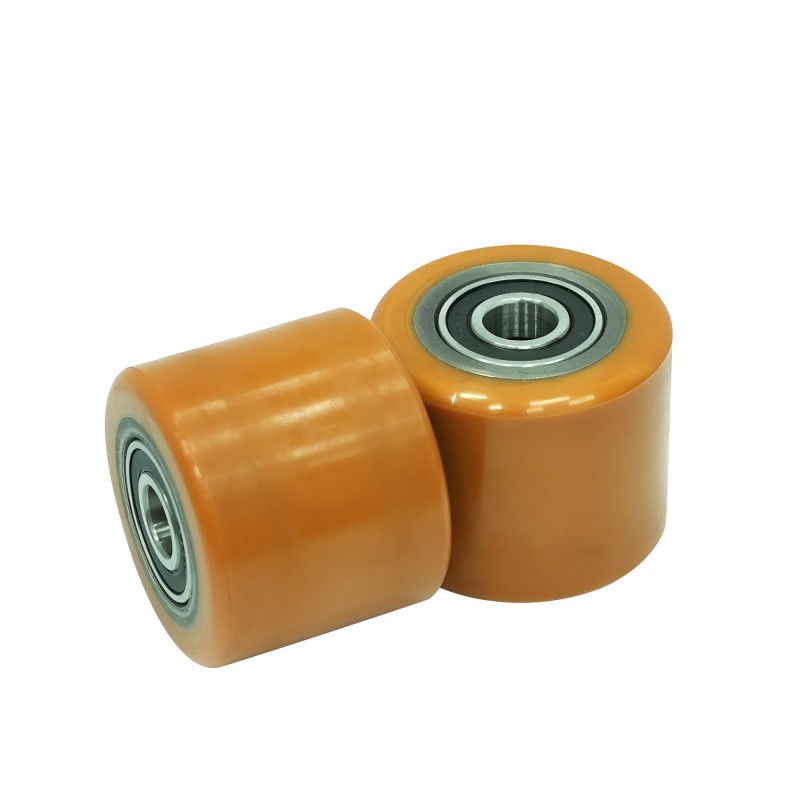

Drive Tire Wheel Fit for Forklift Electric Roller cast roller 92A

This kind of PU wheel are widely used in forklift. Since its widely application, its cost and liftspan are a high challange. With advanced American polyurethane technology and revolutionary XL3™ bonding technology, our wheel has a good performance in all different working conditions like extreme whether (-40 ℃-50℃)

Code :
8570Z2B1D
Outer diameter(mm) :
85
Wheel width(mm) :
70
Hole diameter(mm) :
47
Hole depth(mm) :
14
wheel material :
PU
Rim material :
Cast
Colour :
Orange
Shore Hardness :
92 Shore A

Inquire Now

Categories

Forklift Wheels

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Size choices

1-Features

Energy efficient compound provides easier rolling, capturing the full performance of AC-motor and extending battery life. The newest technology in polyurethane compounds that generates lower operating temperature in high speed warehouse applications is introducted.

2-Components

This goods doesn't Include load wheels w/bearings, axles, lube fittings, screws or roll pins Load. But all the above components are available according to your needs. wheel kits are Durarun Poly 92A which allows a high resistance for longer lifespan. Max shore hardness is also available when choosing customization.

3-Application scenarios and cases

1.Logistics warehousing: pallet handling, shelf storage and retrieval, improving product turnover efficiency

2.Industrial manufacturing: Material transportation on production lines, movement of heavy equipment, and adaptation to high-frequency operations

3.Special environment: chemical workshop (corrosion-resistant), cold storage (low-temperature resistant), food factory (clean and dust-free)

4-In-house factory · source manufacturing —— full process control from R&D to delivery production scale

Production Scale
20,000 sqm production base with an annual production capacity of 1 million forklift wheels. Direct factory supply with no middleman markup.
Technical R&D Capability
30-member professional R&D team supporting customized formula and size development, specializing in polyurethane wheels for specialized environments (e.g., low-temperature resistance).
Quality Control System
Premium polyurethane raw materials, 12-step quality inspection process throughout production, certified by ISO 9001 Quality Management System.

5-Production workshop

6-Shipping logistics

Hangcha Wheels	Diameter,mm	Height,mm	Hole diameter,mm	Depth.mm
Driving wheel	343	135	80	/
Driving wheel	343	114	80	/
Driving wheel	343	108	68	/
Driving wheel	250	100	68	/
Driving wheel	250	100	80	/
Driving wheel	250	85	/	/
Driving wheel	230	75	82	/
Driving wheel	230	75	45	/
Driving wheel	210	70	83	/
Driving wheel	200	100	/	/
Driving wheel	140	55	/	/
Driving wheel	130	55	60	/
Driving wheel	130	55	47	14
Driving wheel	125	50	52	/
Driving wheel	100	40	52	15.5
Bearing wheel	85	110	55	19
Bearing wheel	85	85	52	16.5
Bearing wheel	85	70	55	20
Bearing wheel	80	64	55	20
If you need other specifications, please contact us.
