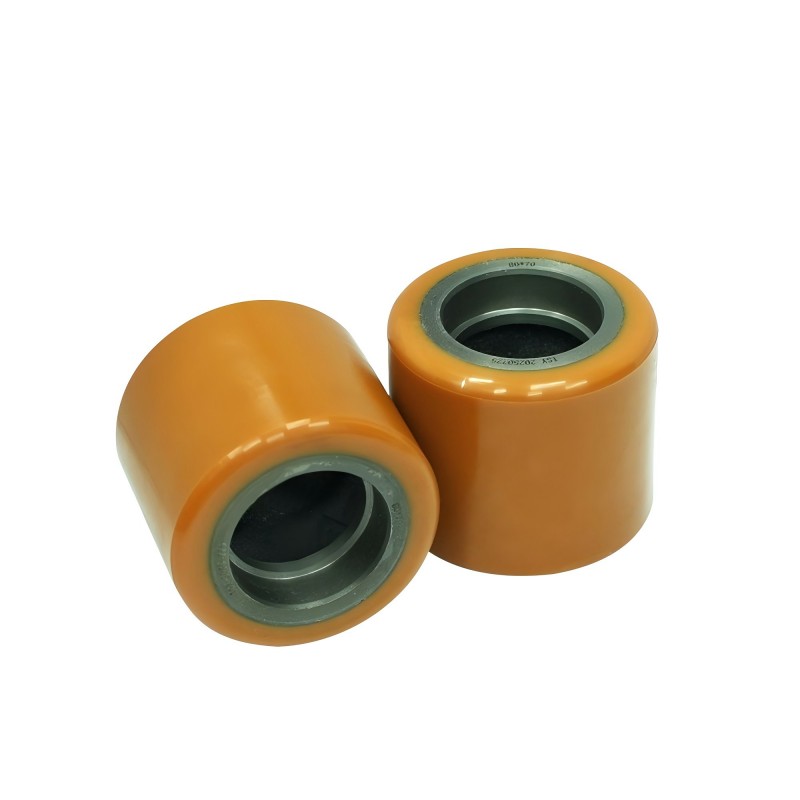

This kind of PU wheel are widely used in forklift. Since its widely application, its cost and liftspan are a high challange. With advanced American polyurethane technology and revolutionary XL3™ bonding technology, our wheel has a good performance in all different working conditions like extreme whether (-40 ℃-50℃)
Code :
8570Z2B1Outer diameter(mm) :
85Wheel width(mm) :
70Hole diameter(mm) :
47Hole depth(mm) :
14wheel material :
PURim material :
SteelColour :
OrangeShore Hardness :
92 Shore A1-Features
Energy efficient compound provides easier rolling, capturing the full performance of AC-motor and extending battery life. The newest technology in polyurethane compounds that generates lower operating temperature in high speed warehouse applications is introducted.
2-Components
This goods doesn't Include load wheels w/bearings, axles, lube fittings, screws or roll pins Load. But all the above components are available according to your needs. wheel kits are Durarun Poly 92A which allows a high resistance for longer lifespan. Max shore hardness is also available when choosing customization.
This rugged Load Wheel reduces maintenance costs while improving equipment reliability in the most demanding industrial environments.
3-Application scenarios and cases
1.Logistics warehousing: pallet handling, shelf storage and retrieval, improving product turnover efficiency
2.Industrial manufacturing: Material transportation on production lines, movement of heavy equipment, and adaptation to high-frequency operations
3.Special environment: chemical workshop (corrosion-resistant), cold storage (low-temperature resistant), food factory (clean and dust-free)
4-In-house factory · source manufacturing —— full process control from R&D to delivery production scale
5-Production workshop
|
Linde Wheels |
Diameter,mm |
Height,mm |
Hole diameter,mm |
Depth.mm |
| Driving wheel | 400 | 160 | / | / |
| Driving wheel | 360 | 130 | 90 | / |
| Driving wheel | 350 | 100 | 68 | / |
| Driving wheel | 343 | 135 | 90 | / |
| Driving wheel | 343 | 114 | 90 | / |
| Driving wheel | 285 | 100 | / | / |
| Driving wheel | 254 | 102 | 80 | / |
| Driving wheel | 230 | 90 | / | / |
| Driving wheel | 230 | 90 | 48 | / |
| Driving wheel | 230 | 82 | 45 | / |
| Driving wheel | 230 | 75 | 45 | / |
| Driving wheel | 150 | 48 | 60 | / |
| Driving wheel | 140 | 50 | 20.5 | / |
| Driving wheel | 125 | 40 | / | / |
| Driving wheel | 125 | 26 | / | / |
| Balance wheel | 285 | 100 | / | / |
| Balance wheel | 140 | 55 | 47 | / |
| Balance wheel | 125 | 60 | 47 | / |
| Balance wheel | 125 | 40 | 35 | / |
| Balance wheel | 100 | 40 | 35 | / |
| Bearing wheel | 100 | 40 | 55 | 20.5 |
| Bearing wheel | 85 | 105 | 55 | 22 |
| Bearing wheel | 85 | 80 | 55 | 22 |
| Bearing wheel | 85 | 60 | 55 | 22 |
| Bearing wheel | 80 | 55 | 47 | 14 |
|
If you need other specifications, please contact us.
|
||||
