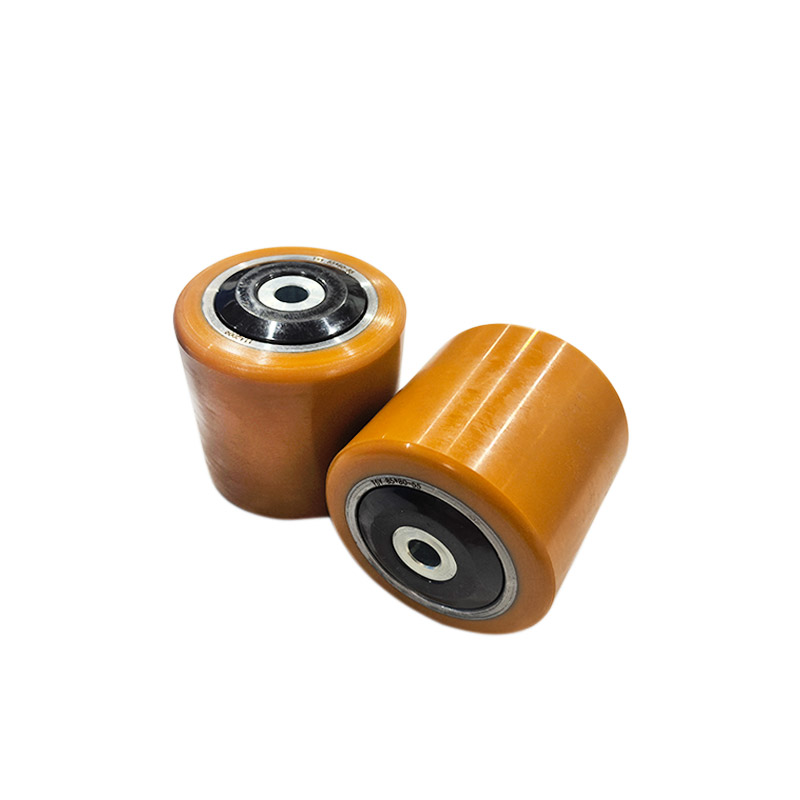

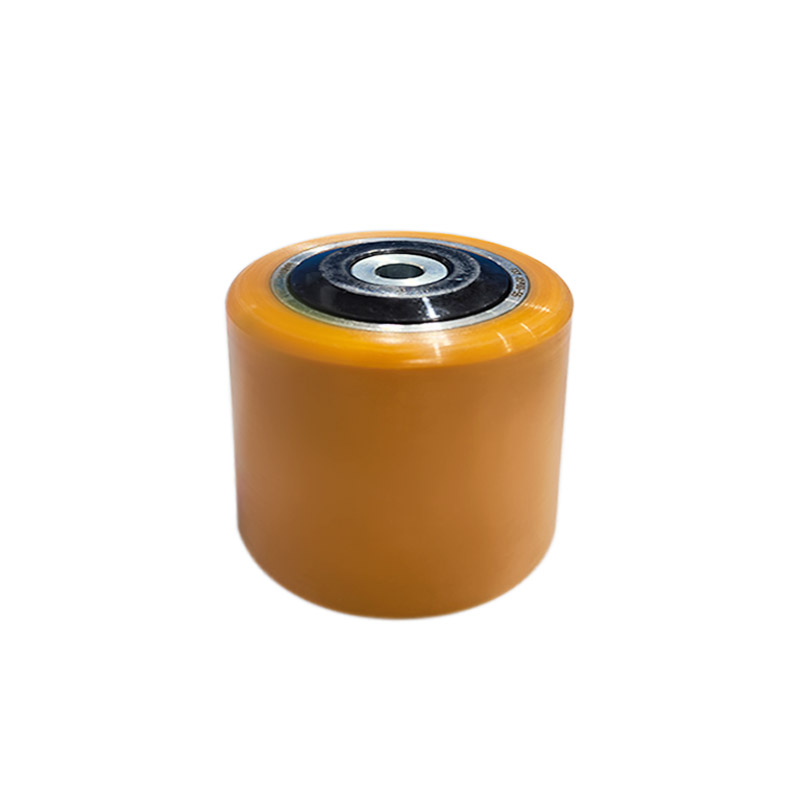

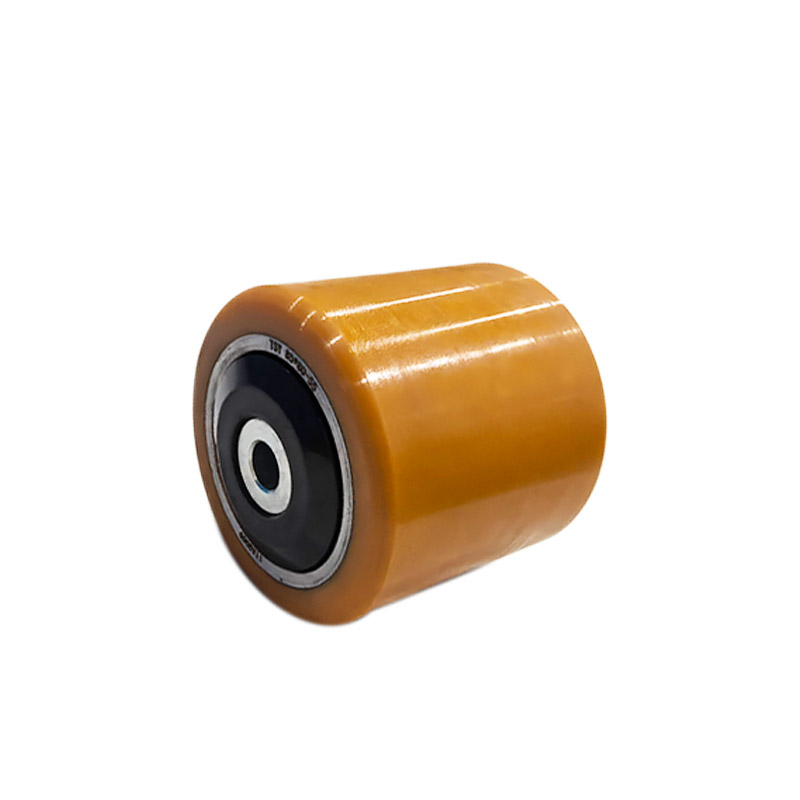

Long lifetime 85x80 PU electric forklift/pallet vehicle load-bearing wheel

Thanks to the waterproof control unit, the high-quality processed electronic forklift wheel is perfectly able to cope with the demands of harsh working conditions such as cold, humidity and dust and is ideally suited for temporary use in e.g. cold stores and production halls.

Code :
8580G15B3D
Outer diameter(mm) :
85
Wheel width(mm) :
80
Hole diameter(mm) :
55
Hole depth(mm) :
22
wheel material :
PU
Rim material :
Steel
Colour :
Orange
Shore Hardness :
92 Shore A

Inquire Now

Categories

Forklift Wheels

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

The PU wheel in transporting, picking and stacking loads up to 2,646 lbs. Due to the low noise level of 70 dB, even longer work with the electric high lift truck is pleasant.

The electric high lift truck can be used up to a gradient of 4 - 8 % depending on the high quality loading PU wheel.

The wheel made of PU and high quality ball bearings features with smooth-running, easily manoeuvrable castors. These PU castors convince with their abrasion resistance and good grip on the ground, while rolling easily and quietly over uneven surfaces - a good middle ground between smooth running and rolling resistance.

IMPORTANT - Requirements for the floor:

Please use the wheel only on absolutely level surfaces. Small unevenness can lead to the wheel not having contact with the ground.

1-Features

1. Each high quality PU wheel has a high resilience performance.

2. These wheels are known for their excellent wear resistance and small compression deformation.

3. When working in low temperatures (like in -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.

2-Technology

Heaviest Load & Duty Cycle - from advanced China polyurethane technology and revolutionary XL3™ bonding technology.

Defies the Worst Surface Conditions - from the toughest polyurethane compound with the highest cut & tear resistance.

No Bond Separation Guaranteed* - Proprietary XL3™ bonding agent and special steel surface finishing creates a bond that resists heat and shear force.

3-Application scenarios and cases

1.Logistics warehousing: pallet handling, shelf storage and retrieval, improving product turnover efficiency

2.Industrial manufacturing: Material transportation on production lines, movement of heavy equipment, and adaptation to high-frequency operations

3.Special environment: chemical workshop (corrosion-resistant), cold storage (low-temperature resistant), food factory (clean and dust-free)

4-In-house factory · source manufacturing —— full process control from R&D to delivery production scale

Production Scale
20,000 sqm production base with an annual production capacity of 1 million forklift wheels. Direct factory supply with no middleman markup.
Technical R&D Capability
30-member professional R&D team supporting customized formula and size development, specializing in polyurethane wheels for specialized environments (e.g., low-temperature resistance).
Quality Control System
Premium polyurethane raw materials, 12-step quality inspection process throughout production, certified by ISO 9001 Quality Management System.
